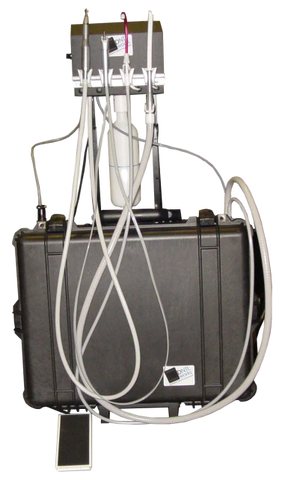

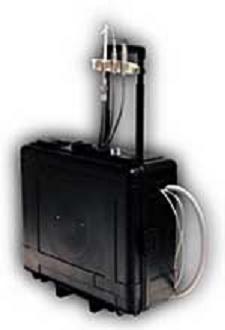

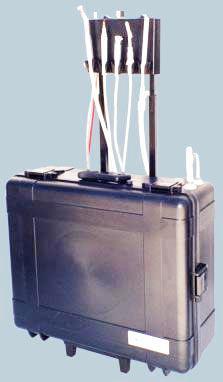

Dental Portable Hygiene Unit Mobile System Self-Contained, In Field Or Office Operatory
Buyamag INC
Dental Portable Hygiene Unit Mobile System Self-Contained and can be used In the field or in office treatments.
The exceptionally powerful and quiet system self-contained hygiene units, exceeds the standard for quality in portable sealant programs.
This mobile system features the suction power of our PortaVac portable vacuum unit, plus an air-water syringe for irrigation and drying.
In cases where a prophylaxis handpiece is indicated, the offers the versatility of a multi-function handpiece (without water). System have a one-piece design and include built-in wheels with retractable handles for easier transportation.
Features:
- The impact-resistant case incorporates built-in wheels and a retractable handle
- Powerful, quiet vacuum pump with dual hoses for HVE and saliva ejector use
- Integrated, non-retracting water source with air/water syringe for irrigating and drying
- Large waste container with automatic overflow shutoff
- Mini-compressor for air/water syringe use
- Hospital-grade power cord with 15 amp circuit breaker
- Made with pride in the USA additional Features
- One-piece design is both durable and rugged
- Powerful vacuum pump with dual-hose design accommodates many brands of HVE and saliva ejector tips
- Impact-resistant case with built-in wheels and retractable handle
- Efficient mini-compressor for air/water syringe use
- The optional piezo-electric scaler for the ProSeal II
- Built-in carrying handle
| DIMENSIONS/WEIGHT Length: 24.5” (62.2 cm) Width: 10.0” (25.4 cm) Height: 20.0” (50.8 cm) Weight: ProSeal I - 48 lbs. (22.7 kg) ProSeal II - 60 lbs. (27.0 kg |
VACUUM MOTOR Power: 1/3 hp Vacuum Strength: 10” InHg Vacuum Flow: 4.8 cfm Waste Receptacle: 2qt. (1.9 Liters) Sound Level: 46 dB Automatic Overflow Shutoff Valve |
|
ELECTRICAL 110 V Part # 1300 220 V Part # 1305 |
HANDPIECE PROSEAL II ONLY Motor: 0 - 40,000 rpm 10:1 reduction, straight nose cone attachment included Other slow speeds and prophy attachments are available. |
| Amperage 5.75A Compressor Type Oil-Free Compressor/Vacuum Pump Dimensions 24.5"x10"x20" to ??" Element Filtration 50 micron Vacuum System Flow Rate 1 scfm @ 27psi Compressor Flow Rate 4.8 scfm @ 10 inhg Vacuum System Hertz 60hz Horse Power 1/16hp Compressor, 1/3hp Vacuum Pump Operating Pressure 65psi Air System |
Shipping Size 24"x24"x19" Shipping Weight 65 lbs Sound Level 46db @ 3' Voltage 120Vac Volume Air Tank 500ml Volume Vacuum Container 2qt, 1.9 Liter Volume Water Container 500ml Wattage 690W to 1440W with Accessories Weight 48lbs |
Voltage Available: 110 or 220v.
Replacement parts available, call us 760-419-3232
